Mobile Crushing Station (Tyre Type)
Henan Centbro Machinery (STM) A Tyre-type Mobile Impact Crushing & Screening Plant is an integrated mobile crushing station featuring a modular chassis design for easy transportation, high flexibility, and fast setup. Equipping a high-efficiency impact crusher, heavy-duty vibrating screen, and belt conveyors, it delivers superior cubical finished products by efficiently processing soft to medium-hard minerals and recycling concrete or asphalt.
Model: Y3S1548F1010 ~ Y3S2160F1315
Product Capacity: 30t/h – 720t/h
Highlights:
1. Wheeled chassis, quick relocation;
2. Integrated crushing & screening, foundation-free;
3. Good cubic shape, high efficiency;
4. Intelligent control, low operating cost
Mobile Crushing Station (Tyre Type)
Product Overview
Henan Centbro Machinery (STM) tyre-type mobile crushing stations are highly integrated, flexible crushing and screening plants driven by trailers or onboard power systems. Featuring modular “crush-first, screen-later” or “screen-first, crush-later” designs, these mobile units operate directly at quarry sites and construction waste processing facilities, drastically reducing material transportation and infrastructure setup costs.
Product Series & Technical Specifications
| Model | Screen Model | Impact Crusher Model | Conveyor Spec | Capacity (t/h) | Total Power (kW) |
| Y3S1548F1010 | 3YK1548 | PF1010 | B500×7m | 30 – 275 | 70 – 90 |
| Y3S1848F1210 | 3YK1848 | PF1210 | B650×7m | 56 – 330 | 128.5 – 150.5 |
| Y3S1860F1214 | 3YK1860 | PF1214 | B650×8m | 65 – 586 | 154 – 190 |
| Y3S2160F1315 | 3YK2160 | PF1315 | B800×8m | 81 – 720 | 210 – 297 |
Key Advantages & Features of Mobile Impact Crushing & Screening Plant
- Integrated All-in-One Design: Combines the feeder, high-performance impact crusher, multi-deck vibrating screen, and foldable belt conveyors on a single wheel-mounted chassis, eliminating complex foundation setup for immediate plug-and-play operation.
- Superior Cubic Product Shape: Utilizes impact crushing technology to produce well-shaped, highly cubical aggregate with minimal flat or elongated particles, meeting strict quality standards for asphalt, concrete, and road base materials.
- High Mobility & Reduced Haulage Costs: Built on a heavy-duty wheeled chassis with a small turning radius, enabling quick towing between jobsites and eliminating expensive raw material transportation.
- Efficient Closed-Circuit Screening: Features an onboard heavy-duty vibrating screen that sorts multiple fractions precisely, automatically returning oversized materials back to the impact crusher via a closed-loop system.
- Smart Operation & Low Maintenance: Equipped with an intuitive PLC control panel for automated monitoring and safety protection, reducing site labor requirements and lowering overall operational costs.

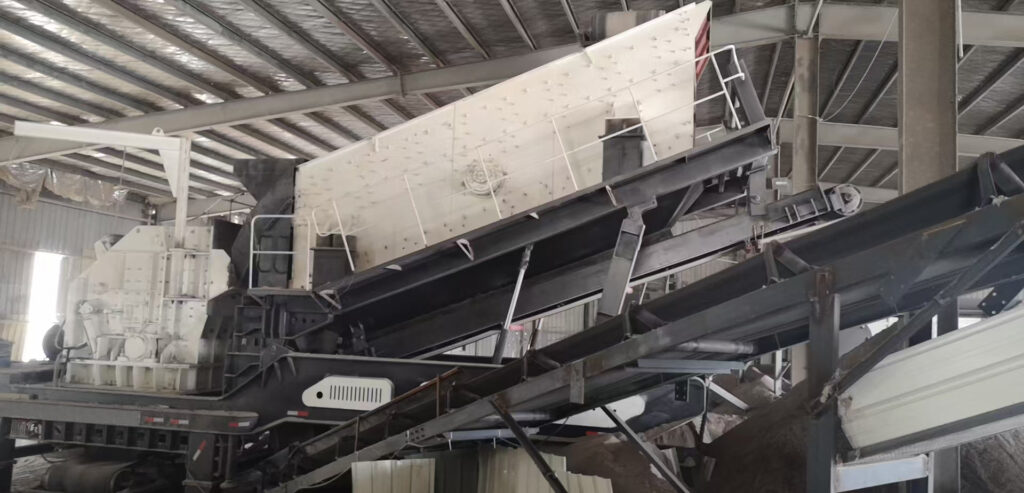

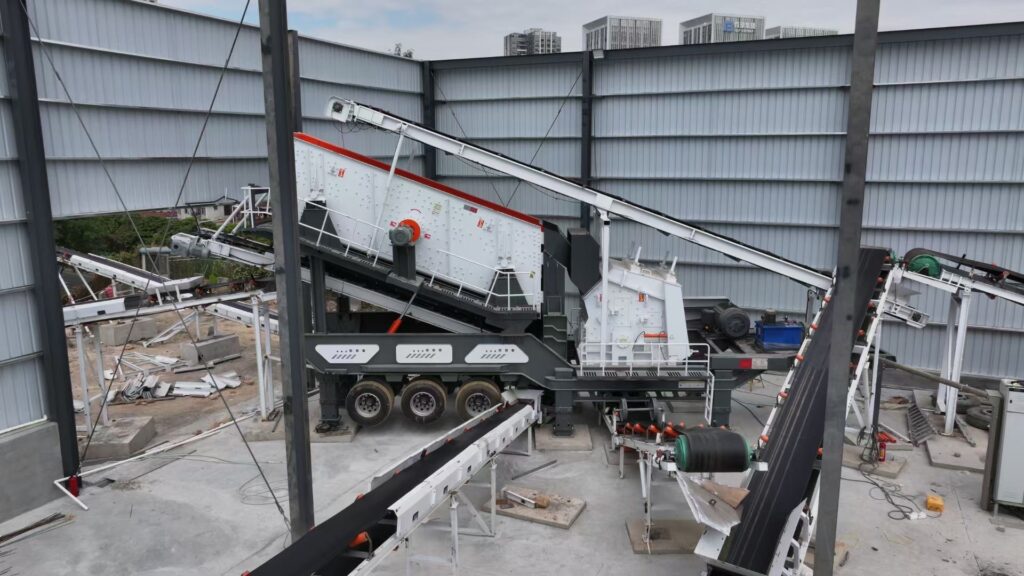

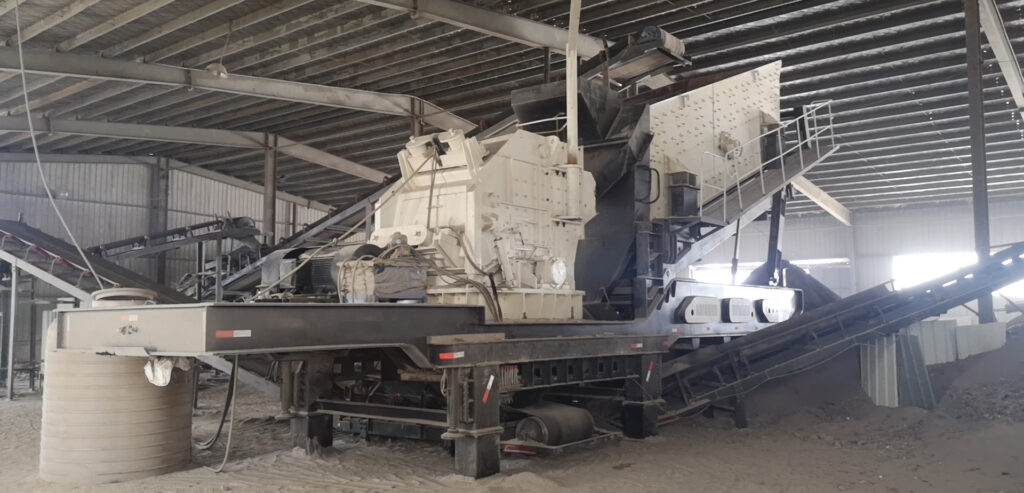

Real-world examples
